Ultrasonic testing of large shafts with longitudinal bore
Inspection task
- Inspects large components from the bore side
- Various defect types or orientations
Features

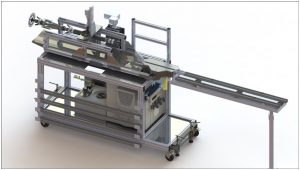

- Mobile inspection system
- Fast and flexible setup
Technical data
- Phased array or conventional ultrasonic inspection technology
- Spring-loaded inspection system to compensate tolerances
- Variable inner diameters through adaptive inspection system possible (from 25 mm)
We are your NDT specialist.
Steel | Railway | Aerospace
Application

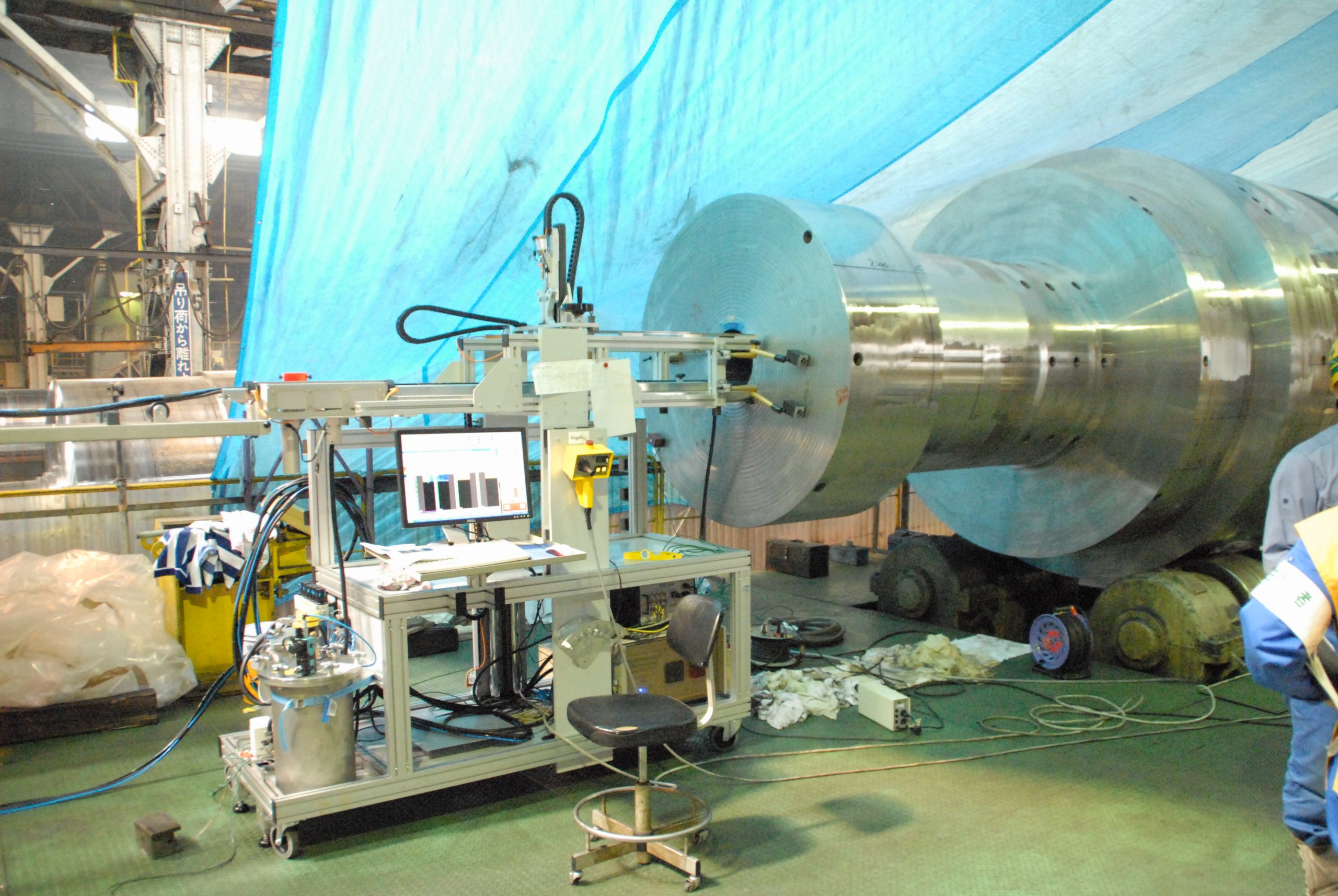

Ultrasonic inspection of a turbine rotor from a bore
Depending on the inspection requirements and geometric characteristics, ultrasonic inspection can be performed from the bore of the rotor. BORRIE is a mobile system that offers all the quality assurance benefits of mechanized inspection.
